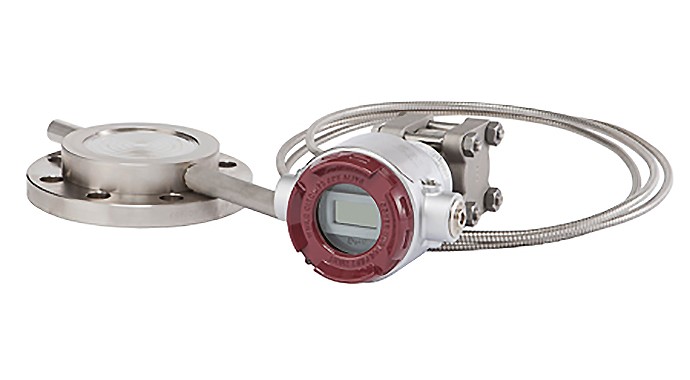

Remote-Seal Absolute Pressure Transmitters (Model JTS9_ _ _) are well-suited for tasks such as measuring the absolute pressure of jacketed reactor distillation equipment in which the vacuum pressure range is reached and temperature or pressure is very high.
| Model | JTS922_ | JTS940_ |
|---|---|---|
| Measurement span | 4 to 104 kPa abs | 35 to 3500 kPa |
| Setting range | 0 to 104 kPa abs | 0 to 3500 kPa abs |
| Reference accuracy(Varies by material and measurement span) | ±0.25% | ±0.25% |
| Fill fluid | Silicone oil (for high temperature and high temperature vacuum models) | |
| Waterproof and dust-proof construction | IEC IP66/IP67 | |
| Explosion-proof construction | TIIS explosion proof (Exd IICT4) | |
| Range of operating temperatures of liquid part(Varies with pressure) | High temperature vacuum models: -5 to 280 °C High temperature high vacuum models: 10 to 280 °C | |
| Range of operating pressures for liquid part(Varies with temperature) | from 0.13 kPa abs | |
| Wetted material | SUS316 (diaphragm SUS316L) | |
| Power | 17.9 to 45 V DC | |
| Output signal | 4 to 20 mA DC (SFN communication) 4 to 20 mA DC (HART® communication) | |
| Flange bore | Flush models: 80 mm. Protruding models: 100 mm | |
